Price: £7.48
(as of Aug 02,2026 01:45:17 UTC – Details)

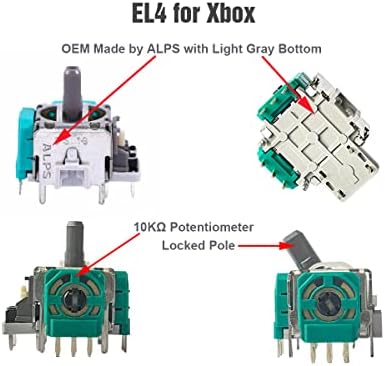

EL4 for Xbox Controller
4x replacement analog joystick widely used in Xbox wireless controllers: Xbox One, One S and X and Elite Series 1. It is also used in newest Xbox Series S|X controllers. The thumbstick module was made by ALPS. It belongs to RKJXV stick controller series. It comes with 10KΩ trimmer potentiometers. This version of analog stick comes in light gray bottom plate. It locks in certain direction when not sit in controller cover. It comes with the same 14 prongs structure as PS4 versions. However, they’re slightly different from each other
✔ Replace the wiper alone even without soldering
In some cases, you can just replace the wheel in the potentiometer to solve specific problems like: Stuttering, dead zone, creeping, or not as responsive as it should be
✔ Replace the potentiometer alone with an iron
80% chances of joystick problem are caused by the sensor. In another words, the rotary mechanism and the tactile switches are not the problem. De-soldering the unit with only 3Pin can be easier than replacing the entire module with as many as 14 prongs
✔ A heat gun to replace the whole module
This is the most suggested for an experienced soldering expert
✔ Experts with a normal iron to replace the whole unit
For a soldering expert with no professional de-soldering wick braid, solder sucker pump or hot air rework station at hand. To make it easy, we suggest crushing the problem joystick into small enough pieces with a pair of pliers
✔ By professional technicians in a cellphone repair shop
Suggested for someone with no handy tools
Is discontinued by manufacturer : No
Package Dimensions : 14.8 x 9.5 x 2.2 cm; 60 Grams
ASIN : B07R5Q15B9
Item model number : Stick-XB1
Country of origin : China
[Compatibility] – This version of analog stick comes in light gray bottom plate. It locks in certain direction when not sit in controller cover. It comes with the same 14 prongs structure as PS4 versions. However, they’re slightly different from each other. Please use this EL4 for Xbox. Be noticed: EL4 does not work with older Xbox 360
[Additional Resistor] – Complicated moving mechanism and daily wear and tear finally caused drifting. Even new sensors cannot be 100% balanced. Calibrating in controller settings might not work. We packed 10x correction resistors to solve the potential problem in hardware level. Solder one or two paralleled tiny resistors onto the potentiometer at the opposite direction against drifting. It will help correct 3 to 5 degrees drifting
[When to replace] – The analog joystick needs to be replaced when your controller has the problem of drifting, creeping, stuttering, a blind spot, a dead spot, a dead zone, no reaction when clicking, or it wouldn’t center after years of wear and tear. The OEM genuine repair parts ensure accuracy and prolong lifespan
[Reminder of Operation] – With as many as 14 prongs, de-soldering and soldering the whole module takes serious skills. Professional repair with a heat gun is suggested. You can simply replace the side potentiometer sensor alone to solve most of the joystick problems
